一、Instrument Overview：
KODIN 3A-MC series coating (plating) thickness gauge is an intelligent detection terminal built by Kedian Instruments based on Internet technology.
The KODIN 3A-MC fully split machine can be equipped with multiple different split probes on one host, and can measure coatings on multiple metals according to the different probe types.

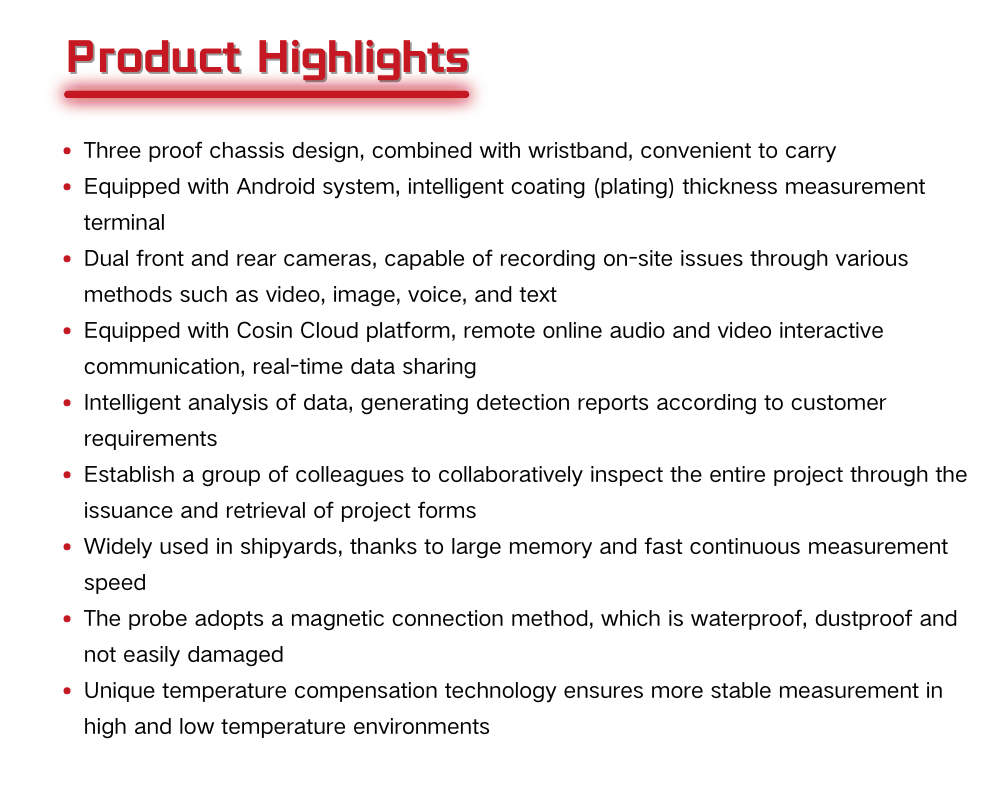

二、Technical Specifications：
|
KODIN 3 Series Host Parameter Table |
||
|
Probe type |
F（Magnetism） |
N（Non-magnetic） |
|
Measuring principle |
Magnetic induction |
Eddy current |
|
Temperature compensation |
Phase Locked Loop (PLL) technology |
|
|
Measurement range |
Determined by the probe |
|
|
Display mode |
3.97-inch IPS high-definition color screen, 480 * 800 pixels |
|
|
Data interface |
Wireless transmission, USB transmission |
|
|
Operating system |
Android |
|
|
Calibration method |
Zero point calibration, system calibration, one point calibration |
|
|
Storage method |
Local eMMC storage, expandable TF card |
|
|
Data report |
Charts, images, and bar charts |
|
|
Display language |
Built in Chinese and English |
|
|
Measure speed |
You can choose between single measurement and continuous measurement |
|
|
Button light |
Backlight can be turned on and off |
|
|
Shutdown mode |
Physical button shutdown, software APP shutdown |
|
|
Protective design |
Dustproof, waterproof, and drop proof |
|
|
Usage environment |
Relative humidity: ≤ 90%; Temperature: -10 ℃~+40 ℃ |
|
|
Working hours |
≥7 hours (under minimum backlight brightness) |
|
|
Power supply |
Built in 3000mAh lithium-ion polymer battery |
|
|
Host size |
161mm(L)*73mm(W)*21mm(H) |
|
|
Total weight |
Approximately 253g (excluding probe) |
|
|
KODIN 3 series probe parameter table |
||||||
|
Probe model |
F/N0.5 |
F1.2 |
N1.2 |
F3 |
F5 |
F10 |
|
Measurement range |
0~0.5 |
0~1.25 |
0~1.25 |
0~3 |
0~5 |
0~10 |
|
|
|
|
|
|
|
|
|
The diameter of the largest small plane of the substrate |
10 |
15 |
18 |
18 |
18 |
22 |
|
Minimum curvature radius (concave) |
5 |
6 |
20 |
10 |
10 |
12 |
|
Minimum curvature radius (convex) |
1.5 |
2 |
5 |
5 |
5 |
5 |
|
The corresponding internal anti-corrosion probe can measure the minimum inner diameter of the pipeline |
45 |
50 |
240 |
80 |
80 |
110 |
|
Measurement accuracy (H is the thickness value)
|
±（1~3）%H±1μm 或H±2μm |
±（2~3）%H ±2μm |
±（2~4）%H ±2μm |
|||
|
Display precision |
0~99.9μm：0.1μm； 100~999μm：1μm； 1mm~10mm：0.01mm； <10mm：0.1mm |
|||||
|
Probe type |
F is a magnetic probe，N is a non-magnetic probe |
|||||
|
Critical thickness of matrix
|
N:0.5mm,??F:1mm?(F16: 5mm) |
|||||
|
Note: The default unit above is mm. |
||||||
三、Site of use：
四、Standard product packing list：
1. 1 main unit of coating thickness gauge
2. 1 set of data cable and charger
3. 1 SIM card ejector pin
4. 1 suitcase
5. 1 copy of user manual
6. 1 copy of warranty card and certificate of conformity
Optional accessories:
1. F0.5 probe
2. N0.5 probe
3. F1.2 probe
4. F3 probe
5. F5 probe
6. F10 probe
7. N1.2 probe
8. Internal anti-corrosion probe
9. (Fe/NFT) matrix
10. Sample piece
11. Screen protector
12. Wrist instrument clip
-
